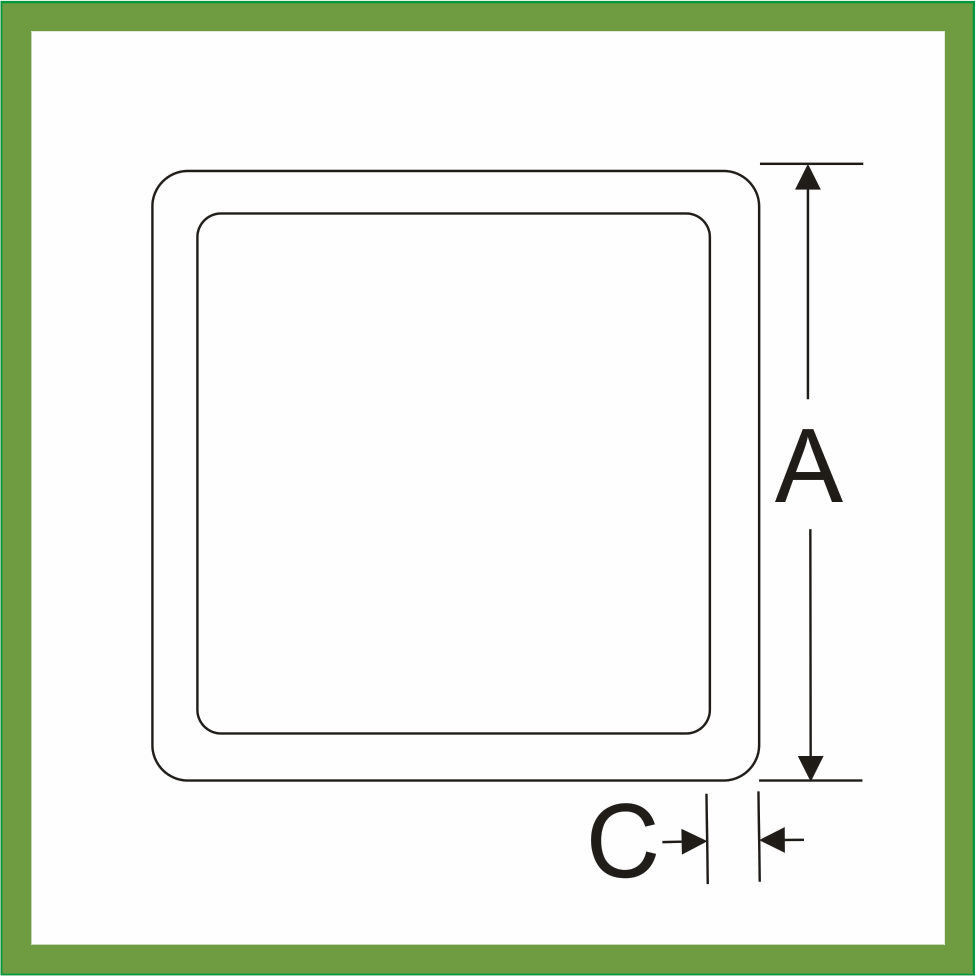

SQUARE HOLLOW - RADIUS
| PRODUCT CODE | DIMENSION | LENGTH | KG/M |
ANODISED PERIMETER | ||
|---|---|---|---|---|---|---|
| A |
B | C | ||||
| SQ25R1265MFN | 25 | 1.2 | 6.5 | 0.305 | 100 | |
| SQ25R2060MFN | 25 | 2 | 6.0 | 0.491 | 100 | |
| SQ25R3060MFN | 25 | 3 | 6.0 | 0.721 | 100 | |
| SQ25R1660MFN | 25.4 | 1.6 | 6.0 | 0.394 | 100 | |
| SQ40R2060MFN | 40 | 2 | 6.0 | 0.802 | 154 | |
| SQ40R2065MFN | 40 | 2 | 6.5 | 0.802 | 154 | |
| SQ40R3065MFN | 40 | 3 | 6.5 | 1.196 | 155 | |
| SQ50R1660MFN | 50 | 1.6 | 6.0 | 0.797 | 189 | |
| SQ50R1960MFN | 50 | 1.9 | 6.0 | 0.942 | 189 | |
| SQ50R2060MFN | 50 | 2 | 6.0 | 1.037 | 190 | |
| SQ50R2065MFN | 50 | 2 | 6.5 | 0.995 | 190 | |
| SQ50R3060MFN | 50 | 3 | 6.0 | 1.494 | 190 | |
| SQ50R3065MFN | 50 | 3 | 6.5 | 1.494 | 190 | |
| SQ50R3065PWH | 50 | 3 | 6.5 | 1.494 | 190 | |
| SQ50R5060MFN | 50 | 5 | 6.0 | 2.358 | 195 | |
| SQ65R3065MFN | 65 | 3 | 6.5 | 2.009 | 251 | |
| SQ75R3065MFN | 75 | 3 | 6.5 | 2.271 | 290 | |
| SQ100R3065MFN | 100 | 3 | 6.5 | 3.091 | 398 | |

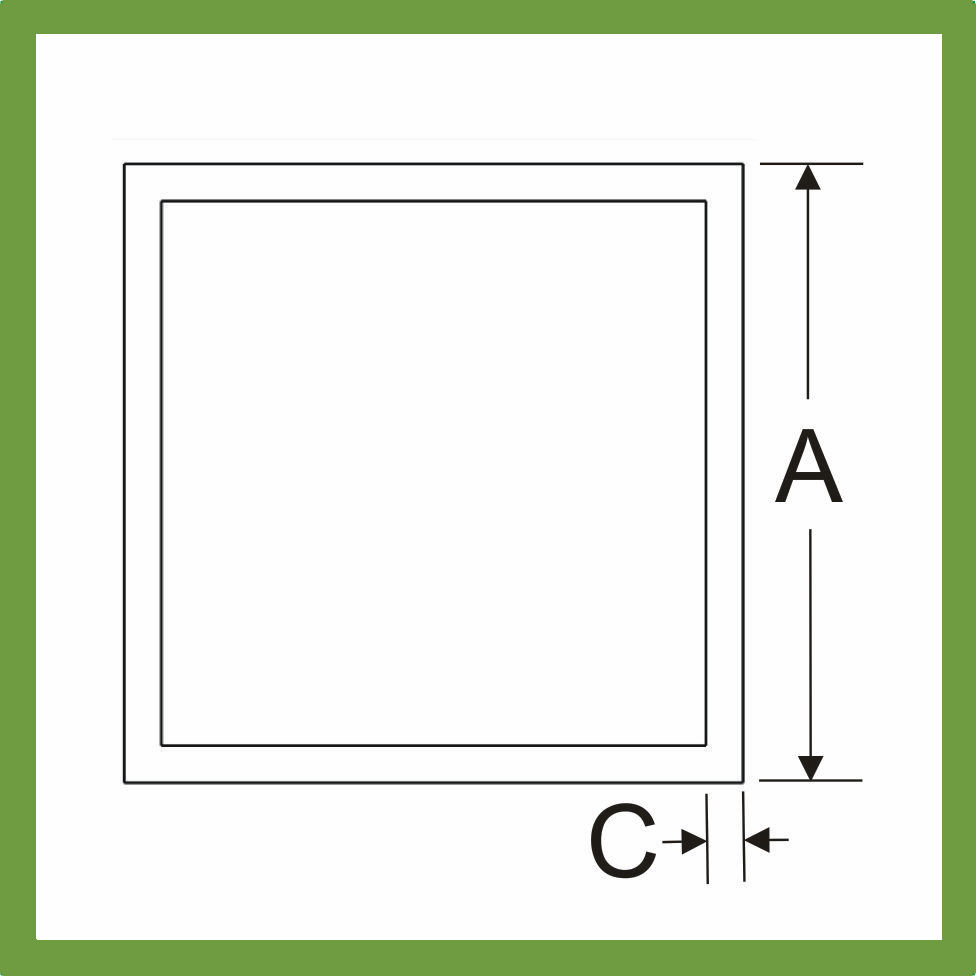

SQUARE HOLLOW - SQUARE
| PRODUCT CODE | DIMENSION | LENGTH | KG/M |
ANODISED PERIMETER | ||
|---|---|---|---|---|---|---|
| A |
B | C | ||||
| SQ19S1265MFN | 19 | 1.2 | 6.5 | 0.231 | 76 | |
| SQ20S1247MFN | 20 | 1.2 | 4.8 | 0.240 | 80 | |
| SQ25S3060MFN | 25 | 3 | 6.0 | 0.713 | 100 | |
| SQ25S3065MFN | 25 | 3 | 6.5 | 0.712 | 100 | |
| SQ32S1665MFN | 32 | 1.6 | 6.5 | 0.528 | 128 | |
| SQ32S2050MFN | 32 | 2 | 5.0 | 0.650 | 128 | |
| SQ32S2060MFN | 32 | 2 | 6.0 | 0.648 | 128 | |
| SQ32S3060MFN | 32 | 3 | 6.0 | 0.940 | 128 | |
| SQ40S1655MFN | 40 | 1.6 | 5.5 | 1.967 | 160 | |
| SQ40S1665MFN | 40 | 1.6 | 6.5 | 0.666 | 160 | |
| SQ40S2065MFN | 40 | 2 | 6.5 | 0.822 | 160 | |
| SQ40S3065MFN | 40 | 3 | 6.5 | 1.199 | 160 | |
| SQ50S1660MFN | 50 | 1.6 | 6.0 | 0.834 | 200 | |
| SQ50S1660PWH | 50 | 1.6 | 6.0 | 0.834 | 200 | |
| SQ50S1665MFN | 50 | 1.6 | 6.5 | 1.836 | 200 | |
| SQ50S2060MFN | 50 | 2 | 6.0 | 1.037 | 200 | |
| SQ50S2065MFN | 50 | 2 | 6.5 | 1.045 | 200 | |
| SQ50S3065MFN | 50 | 3 | 6.5 | 1.523 | 200 | |
| SQ50S4060MFN | 50 | 4 | 6.0 | 1.994 | 200 | |
| SQ75S1657MFN | 75 | 1.6 | 5.7 | 1.263 | 300 | |
| SQ75S1660MFN | 75 | 1.6 | 6.0 | 1.263 | 300 | |
| SQ100S2565MFN | 100 | 2.5 | 6.5 | 2.620 | 400 | |
